RC500-CS3

⛏️ RC500-CS3 500 m Crawler-Mounted Reverse Circulation Drill Rig

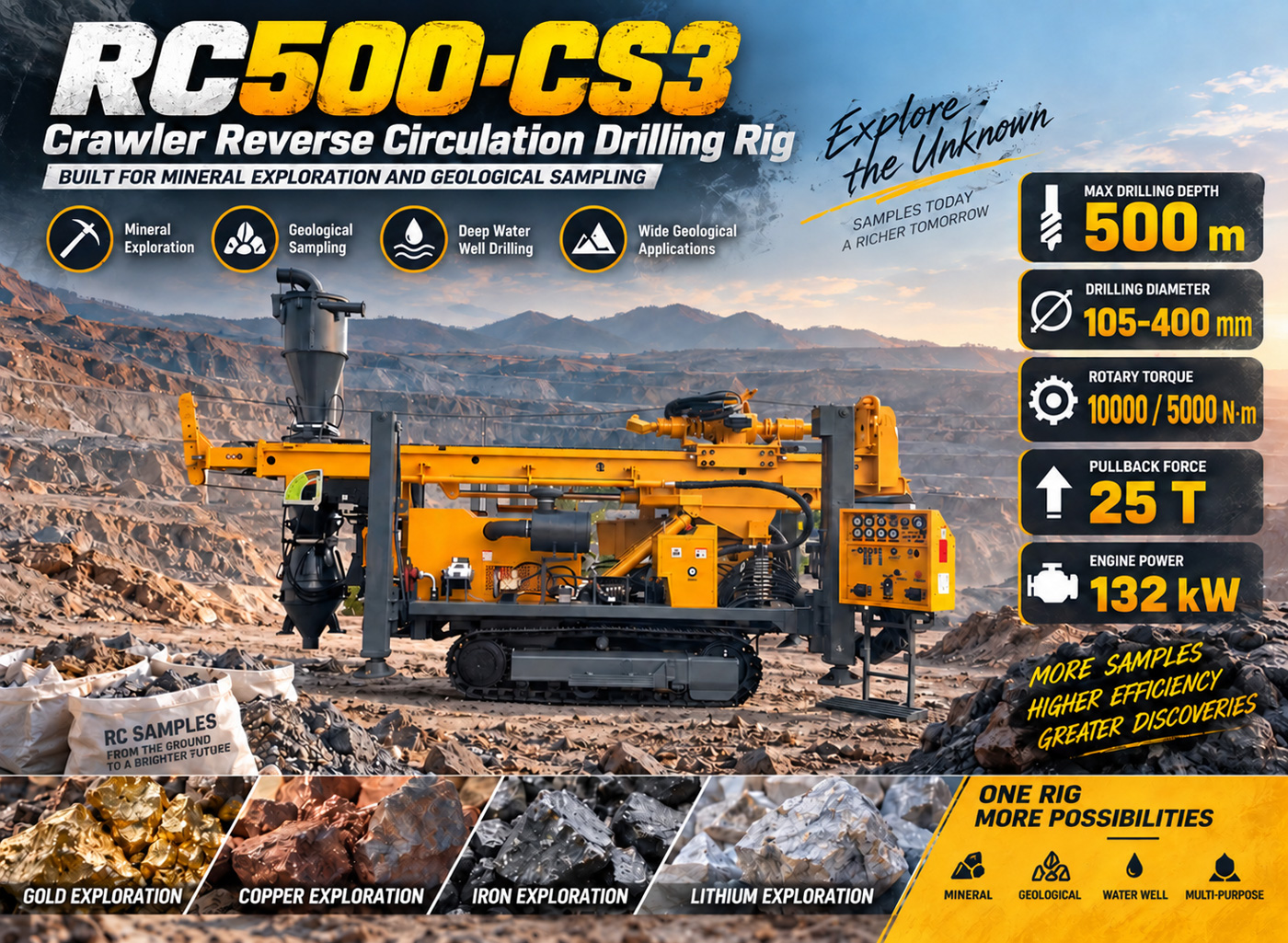

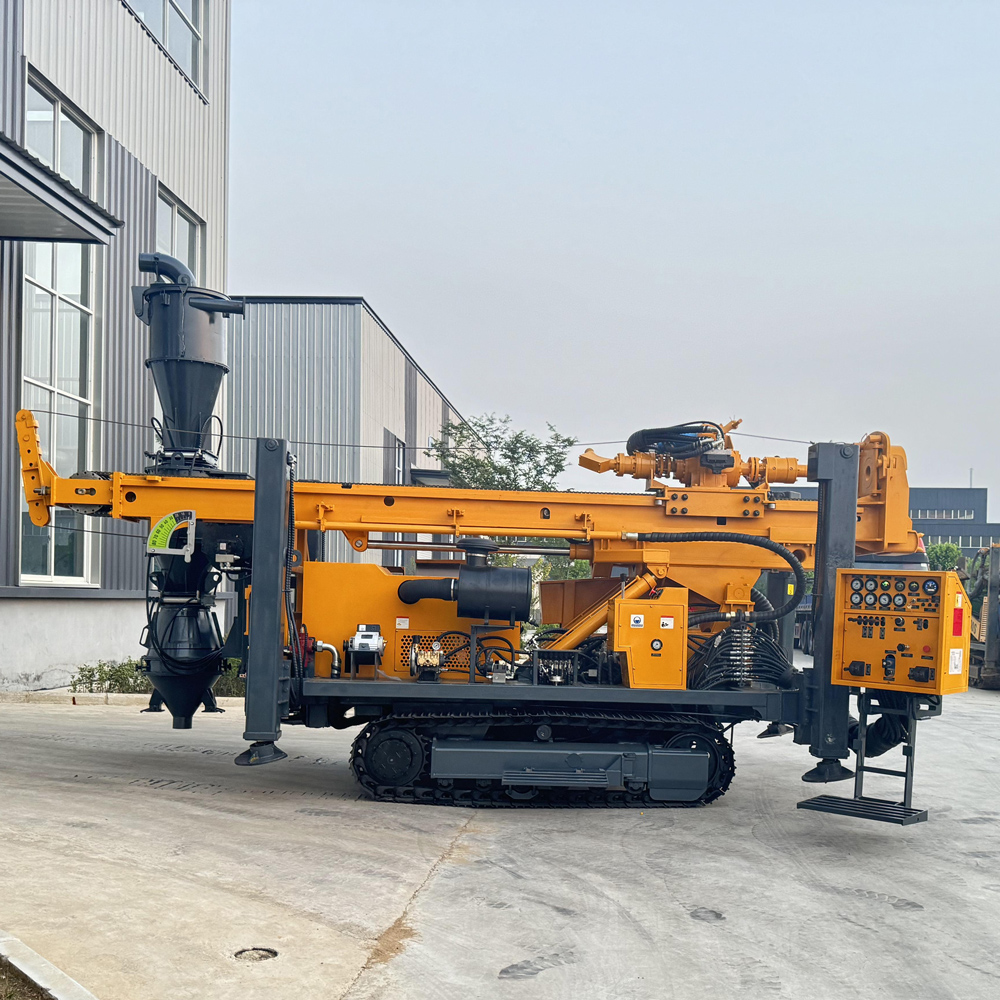

The RC500-CS3 is a 500 m-class crawler-mounted reverse circulation drill rig designed primarily for mineral exploration and rapid on-site sampling. Compared with standard RC drill rigs, its biggest difference is the integrated three-in-one cyclone sampling system, which combines cuttings return, cyclone separation, sample splitting, and sample collection into a single workflow. This reduces repetitive operations in ground transfer and manual sample splitting, making it better suited for continuous exploration holes and large-volume sample collection tasks.

🌀 The CS3 Three-in-One Cyclone Sampling System Is the Core of This Machine

The CS3 system integrates cyclone separation, representative sample splitting, and sample collection into one unit. Cuttings produced during drilling return to the surface through the inner tube of dual-wall RC drill pipes and enter the cyclone system directly, where high-speed airflow is separated from solid particles. The sample is then split into portions suitable for geological logging and assay. For mineral exploration projects that require strict depth-based sampling, this integrated process reduces intermediate steps.

🔄 Reverse Circulation Inner-Tube Sample Return Reduces the Risk of Cross-Contamination Between Hole Sections

Reverse circulation drilling relies on dual-wall drill pipes to create an independent sample return channel. Cuttings mainly return through the inside of the drill pipe rather than rising along the annulus outside the pipe. This shortens the path along which samples contact other formations on the hole wall and helps reduce the probability of cuttings from different depths mixing with one another. The final sample representativeness still depends on hole cleaning, pipe connection, return stability, and on-site sampling management.

🧪 Drilling, Sample Splitting, and Bagging Can Be Continuously Linked

The RC500-CS3 is suitable for continuous sampling at fixed footage intervals. Each sample bag can be labeled with the hole number, start and end depth, date, and sample number for subsequent submission, archiving, and traceability. For exploration teams that need to process a large number of samples in a single day, the three-in-one system can reduce manual sample pouring, secondary splitting, and repeated handling, improving on-site organization efficiency.

🥇 Gold Exploration: Suitable for Rapid Large-Scale Anomaly Verification

Gold reconnaissance and peripheral prospecting often require many drill holes to verify surface anomalies, mineralization beneath cover, and the extension of structural belts. The RC500-CS3 can quickly obtain depth-segmented cuttings samples for observing color, alteration, sulfides, and mineralization changes, then use laboratory assays to screen key target areas. For high-value anomaly zones, core drilling can be further used to obtain complete cores.

🟠 Rapid Cuttings Surveys for Copper, Iron, and Lithium Projects

Copper, iron, lithium, and other mineral projects can also use RC samples to quickly assess stratigraphy and mineralization trends. The 500 m drilling depth can cover a larger vertical range, especially in areas with thick cover or deeply buried ore bodies. For large exploration areas, using RC drilling first to establish more control points and then conducting detailed coring in key zones is a common combined approach.

📏 500 m Drilling Depth Expands the Scope of Ore Body and Groundwater Investigation

With a maximum drilling depth of 500 m and a hole diameter of 105–400 mm, the RC500-CS3 can handle both medium-deep mineral exploration holes and deep water wells and general groundwater projects. Different applications have different requirements for drilling tools and construction methods: exploration holes focus more on sample return quality and sample splitting management, while water wells focus more on hole wall stability, well completion structure, and producing aquifers.

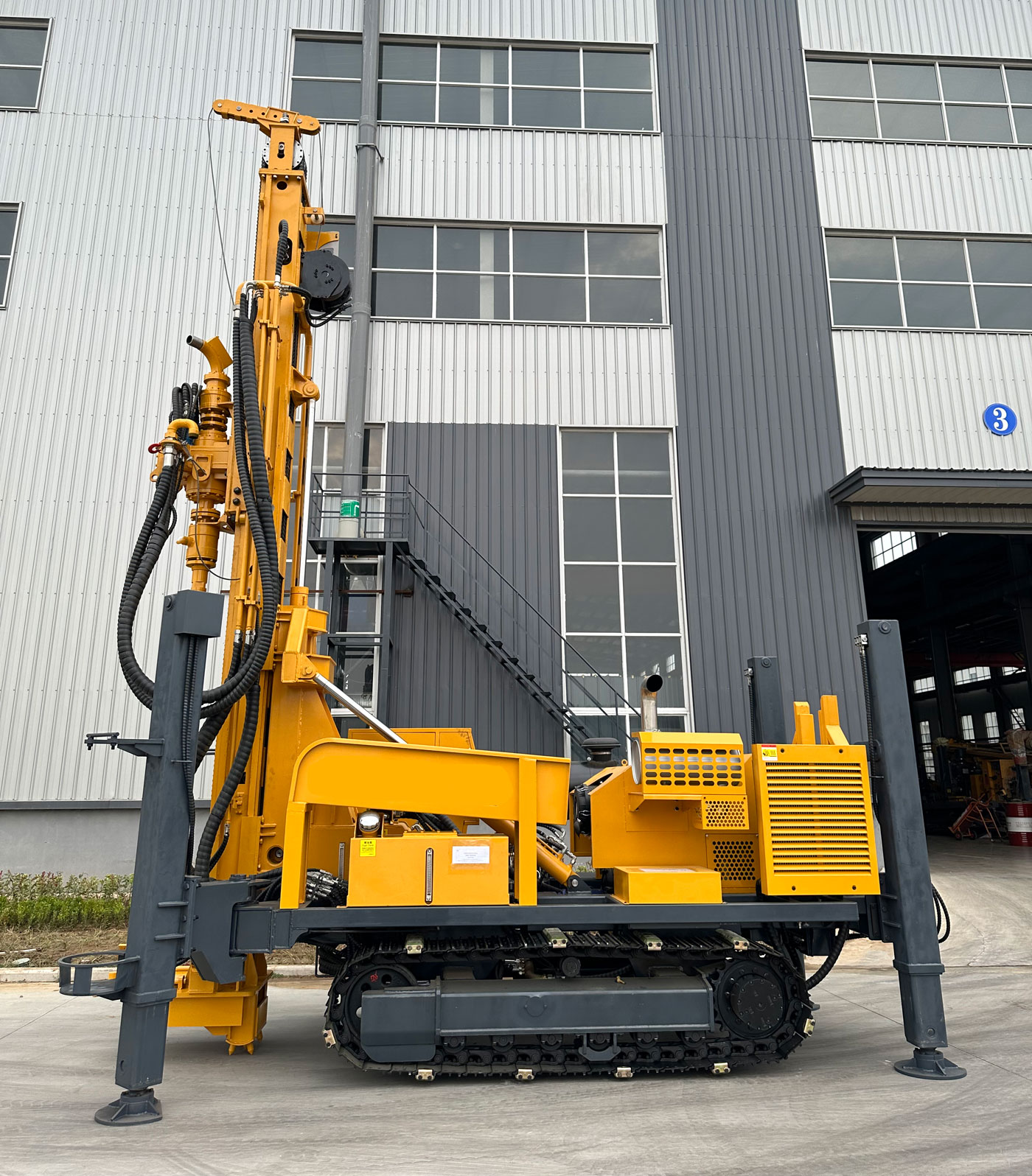

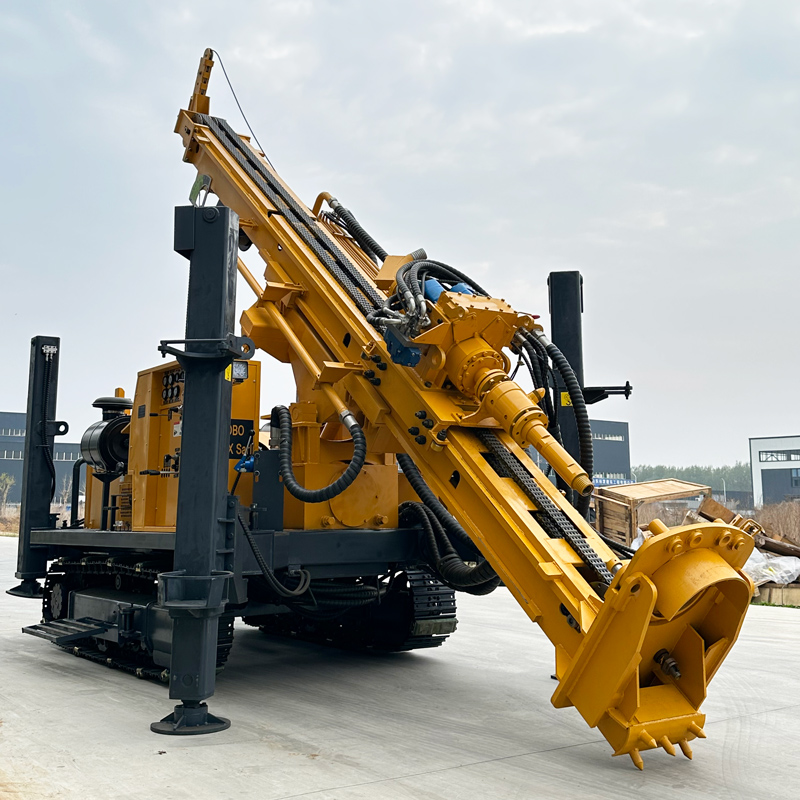

📐 45° / 90° Working Angles Facilitate Control of Inclined Targets

The machine supports 45° and 90° working angles. For inclined ore bodies, veins, and fault zones, 45° inclined holes can improve the crossing angle through the ore body; for general water wells, overburden investigation, and conventional vertical exploration, 90° construction can be used. Before正式 spudding, the drilling angle should be determined based on the geological section, ore body attitude, and hole location conditions.

💪 25 T Pulling Force Is Suitable for 500 m-Class Drill String Handling

The pulling force is 25 T and the feed force is 7 T. At 500 m-class hole depths, the self-weight of the drill pipe and the friction of the hole wall are higher than those of 400 m models. Greater pulling capacity helps with normal tripping, RC drill pipe handling, and some casing operations. If abnormal pulling resistance occurs, it should first be addressed through hole cleaning and process judgment rather than relying directly on maximum pulling force to pull the tools forcefully.

🔄 10000 / 5000 N·m Dual-Mode Rotary Torque

The maximum rotary torque is 10000 / 5000 N·m, corresponding to maximum rotary speeds of 75 / 150 r/min. The high-torque mode is more suitable for larger hole diameters and high-load drilling, while the higher-speed mode is suitable for hole sections with lower resistance. During RC drilling, attention should be paid simultaneously to rotary load, DTH hammer impact, and sample return status to ensure stable drilling and sample recovery.

💨 1.6–6 MPa Air Pressure Range Is Suitable for Higher-Load Pneumatic Drilling

The recommended working air pressure given in the data is 1.6–6 MPa, and the recommended air consumption is 16–55 m³/min. For 500 m-class RC drilling, the air compressor must not only drive the DTH hammer but also carry cuttings back to the surface at high speed through the inner tube, so both pressure and displacement are critical. The actual selection should be based on hole diameter, RC hammer specifications, altitude, and rock hardness.

🧹 Sample Return Volume and Sample Cleanliness Must Be Continuously Monitored

During reverse circulation sampling, geologists should continuously observe sample return volume, particle size, color, moisture, and signs of sample cross-contamination. If drilling resumes after pipe connection, hole cleaning, or a shutdown, transition samples should be handled according to on-site sampling procedures to avoid mixing residual cuttings from the previous hole section into the next depth sample.

🏷️ Depth Marking and Sample Numbering Determine Whether Later Data Can Be Traced

The three-in-one sampling system can improve sample splitting efficiency, but sample management still needs to be standardized. Each sample bag should clearly indicate the hole number, sample number, start and end depth, and date, and on-site records should correspond one-to-one with sample bags. For ore samples requiring laboratory analysis, duplicate samples, blank samples, and standard samples should also be set according to project quality control requirements.

🚜 Crawler Chassis Is Suitable for Mining Areas and Remote Exploration Platforms

The machine has a travel speed of about 2.5 km/h and a maximum gradeability reference of 21°, making it suitable for gravel roads in mining areas, field exploration sites, and generally uneven ground. Since the overall weight is about 12 T, road load-bearing capacity, platform area, and slope safety should be confirmed before moving between hole locations. It should not be judged directly by the passage conditions of small crawler equipment.

⚡ 132 kW Cummins Power Provides Greater Reserve for the RC System

The RC500-CS3 is equipped with a 132 kW Cummins engine to provide power for rotation, feed, crawler travel, and auxiliary hydraulic actions. Reverse circulation project sites usually also require large air compressors and sampling equipment at the same time, so fuel supply, equipment layout, and maintenance space should be planned in advance to avoid congested construction access.

🧱 Fractured Zones and Fissured Formations Can Easily Affect the Correspondence Between Samples and Depth

In fault fracture zones, breccia, and formations with developed fissures, wall collapse blocks may remain temporarily in the hole and then return in a concentrated manner, affecting the correspondence between samples and depth. Operators should control the penetration rate and maintain stable air supply, while geologists should increase on-site records in abnormal hole sections and, if necessary, separately note sample quality conditions.

🌧️ Loose Overburden Can Be Combined with Mud Drilling

Upper soil layers, clay, sand layers, and gravel layers are not necessarily suitable for direct RC pneumatic drilling. The data show that this model also supports mud rotary drilling, so the upper hole section can first be stabilized using mud, casing, or other methods, and then switched to reverse circulation or DTH processes after entering rock formations to improve hole stability.

💧 It Can Also Be Used for Deep Water Wells in Agriculture, Industry, and Mining Areas

In addition to mineral exploration, the RC500-CS3 can also be used for agricultural irrigation, industrial water supply, mining area water supply, and groundwater development depending on configuration. Water well projects do not necessarily require the full three-in-one sampling system to be activated; the drilling method and supporting equipment should be selected according to the well completion purpose to avoid unnecessary on-site processes.

🧵 1.5 T Auxiliary Winch for Handling Drill Tools and Sampling Accessories

The small auxiliary winch has a pulling force of 1.5 T and can be used to handle RC hammers, drill pipes, sampling hoses, and other auxiliary tools. Sample bags and operating areas are usually also needed near the three-in-one cyclone sampling system, and during lifting, suspended objects should be kept out of the working range of sampling personnel.

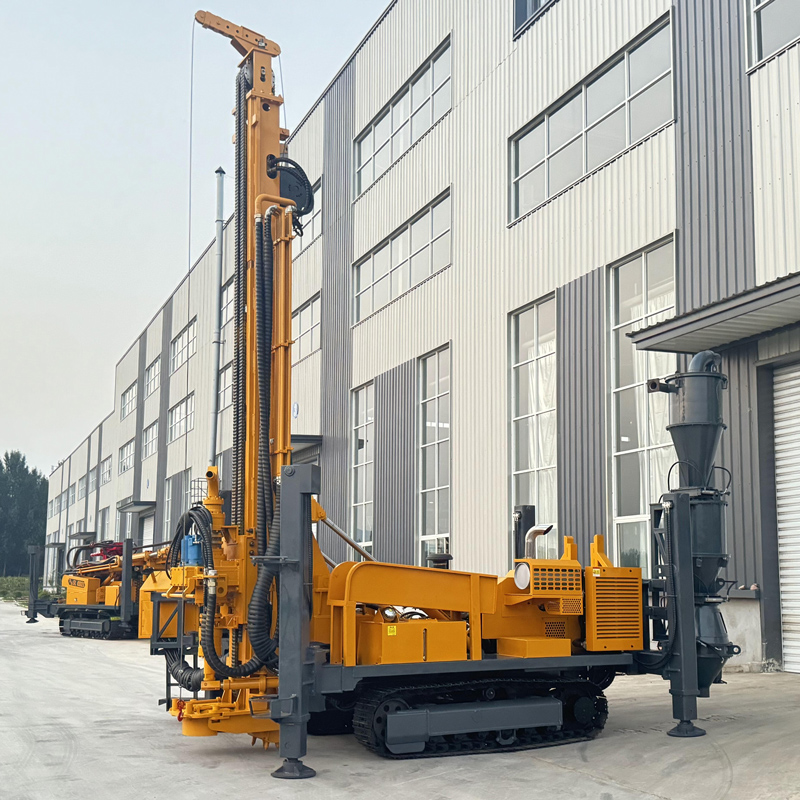

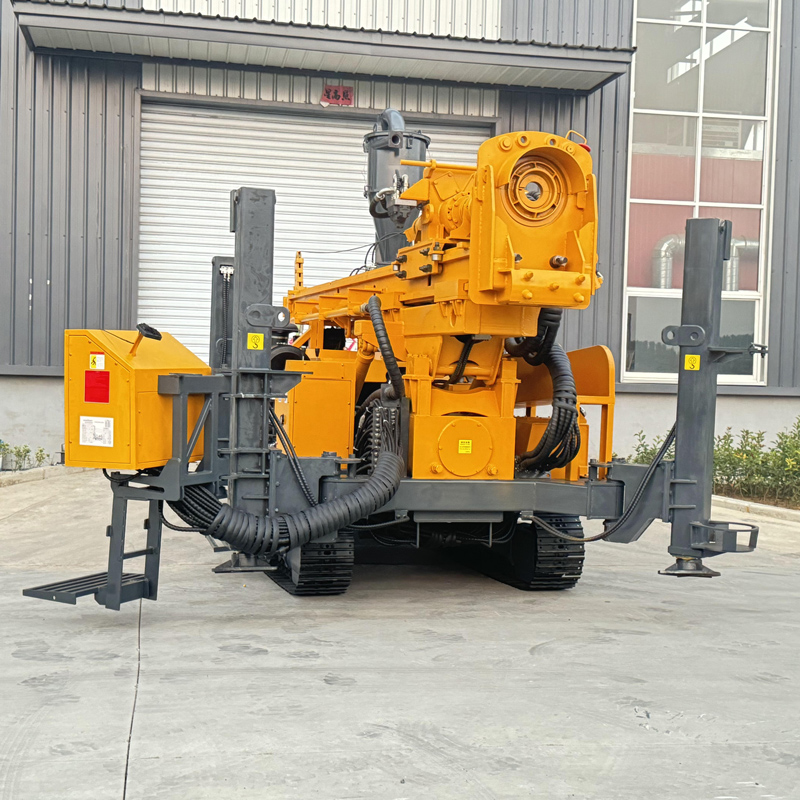

🦵 1.6 m Hydraulic Outriggers Ensure Stability During High-Torque Operations

The hydraulic outrigger stroke is 1.6 m, which helps level the machine and provide stable support. Especially during 45° inclined holes and high-torque RC drilling, the force direction on the machine is more complex, and the outriggers and ground bearing conditions directly affect overall machine stability and hole direction control.

📦 A 12 T Overall Machine Requires More Complete Site Planning

The overall weight is about 12 T, and the overall dimensions are about 7 × 2.1 × 2.9 m. In addition to the drill rig, RC projects often require air compressors, cyclones, sample splitters, sample bags, and transport vehicles, so the drilling platform area and equipment layout should be designed in advance to ensure smooth sample return lines and safe personnel access.

🧰 Optional Mud Pump, Centrifugal Pump, Generator, and Foam Pump

Depending on the formation and drilling method, a mud pump, centrifugal pump, generator, and foam pump can be optionally configured. Projects with more loose layers place greater emphasis on the mud system, hard rock and RC projects rely more on air compressors and pneumatic drilling tools, and formations with severe air leakage may require foam assistance. The configuration should be combined around the main project requirements.

⚠️ RC Drilling and Sampling Precautions

Before starting work each day, check the dual-wall RC drill pipe seals, sample return lines, cyclone, sample splitter, sample bags, engine, hydraulic system, and high-pressure air hoses; maintain continuous sample return and accurately record depth during construction; after completion, promptly clean residual cuttings from the sampling system to prevent contamination in the next drill hole or next sample section.

Due to differences in actual geological conditions, downhole tools, drilling angles, and operating methods, the final drilling efficiency, drilling depth, sample recovery, and well completion results should be based on on-site conditions.

📊 Main Technical Parameters
