Comparing the "three-in-one cyclone sampling system" with "conventional RC sampling" can easily turn into a ranking of equipment configurations. A more practical approach is to look at what happens after cuttings return to surface from the hole bottom: in a conventional RC workflow, after cuttings reach the collar, site personnel typically need to complete collection, splitting, and bagging in sequence; the three-in-one system's approach is to link cyclone separation, representative splitting, and sample bagging into one continuous process. The site's description of the WR600RC-CS3 states that it "directly links cuttings return, cyclone separation, sample splitting, and sample bagging in series," so the differences are concentrated in the stages after the collar, not in the method of downhole rock fragmentation.
One boundary needs to be stated first: both workflows obtain cuttings samples from the hole, not complete core. RC drilling samples at fixed intervals, for example collecting one bag every 1 m or every 2 m, and this does not change based on whether a three-in-one system is used.
Which stages the differences are concentrated in
Following the path of cuttings from the hole to the sample bag, the two workflows can be broken down into six stages: sample return, separation, splitting, bagging, cleaning, and recording. The first four are differences in how the process is connected; the last two are management requirements that both workflows must face.
Stage one: sample return path and continuity requirements are the same
Regardless of whether a three-in-one system is used, a 600 m-class RC hole requires cuttings to continuously return to surface through the inner tube of dual-wall drill pipe. The WR600RC-CS3 recommends a working air pressure of 1.6–6 MPa and air consumption of 16–75 m³/min; this air pressure not only drives the RC hammer but also ensures cuttings continuously return to the cyclone system. The material also notes that common signs of insufficient air volume are reduced sample return, delayed sample return, and bottom-hole cuttings accumulation, so air compressor selection must consider hole depth, hole diameter, and altitude. There is no difference between the two workflows at this stage.
Stage two: how gas-solid separation is organized
In conventional RC sampling, after cuttings return to the collar, a transition stage of separation or collection is needed before splitting. The three-in-one system's approach is for cuttings to enter the cyclone system directly for gas-solid separation after return. The difference is that this step is integrated into a continuous pipeline, reducing the number of times cuttings are exposed and transferred on surface. The material describes this as "reducing manual sample pouring and secondary transfer," which is a difference in process organization, not an additional promise regarding sample representativeness.
Stage three: connection of the splitting stage
The three-in-one system places representative splitting and cyclone separation in the same continuous process. In a conventional workflow, splitting usually follows collection and is a separately arranged operation. The site's material does not provide specific values for splitting precision or specifications for splitting ratios, so splitting precision, reduction ratio, and representativeness determination should still be confirmed in writing with the manufacturer and cannot be replaced with data from other models.
Stage four: continuity of the bagging stage
The material shows that the three-in-one system directly links sample bagging after splitting, making it suitable for mineral exploration projects with large daily sampling volumes. In a conventional workflow, bagging generally follows splitting and is performed separately. For projects sampling continuously at fixed intervals, the tighter the connection between bagging, drilling, and sample return, the fewer interruptions to the sampling rhythm; however, the specific number of samples that can be processed per shift depends on site organization, and the material does not provide processing capacity figures.
Stage five: cleaning requirements apply equally to both workflows
The material clearly states that if residual cuttings between different mineralized zones are not cleaned in time, the risk of sample contamination increases. Each time drilling stops, the hole is changed, or a new key sampling interval is entered, the interior of the cyclone, splitter, and sample return hose should be checked for residue. The three-in-one system improves process connection efficiency but cannot eliminate the cleaning procedure; conventional workflows must likewise perform cleaning on collection and splitting equipment.
Stage six: sample recording and tracking requirements remain unchanged
Each sample bag should be marked with the drill hole number, sample number, start and end depths, date, and shift, and site records should be consistent with the sample bags; if the project follows a QA/QC system, duplicate samples, standard samples, and blank samples should also be set up as required. These requirements are not reduced by process integration; instead, because the continuous operation rhythm is faster, the demand for synchronized recording is more direct.
Comparison of the six stages
| Stage | Conventional RC sampling workflow | Three-in-one cyclone sampling system |
|---|---|---|
| Sample return | Cuttings return to the collar through the inner tube of dual-wall drill pipe | Also returns through the inner tube, then enters the cyclone system |
| Separation | Separated separately after collection at the collar | Gas-solid separation directly after return |
| Splitting | Arranged separately after collection | Linked in a continuous process with cyclone separation and bagging |
| Bagging | Completed separately after splitting | Directly linked after splitting |
| Cleaning | Collection and splitting equipment need cleaning | Cyclone, splitter, and sample return hose need cleaning |
| Recording | Marked by hole number, depth, and number | Same requirements; faster pace relies more on synchronized recording |
Which conditions affect how this difference is actually reflected
The three-in-one system targets the connection of surface sampling stages; downhole conditions still determine whether sample return itself is stable. The material mentions that fault fracture zones and large fissures can cause air leakage, and cuttings may remain in the hole and then return in concentrated bursts, worsening the correspondence between samples and actual depth. In this case, regardless of which sampling workflow is used, penetration should be reduced, hole cleaning maintained, and special records made in abnormal intervals; if necessary, foam, casing, or other air leakage treatments should be used.

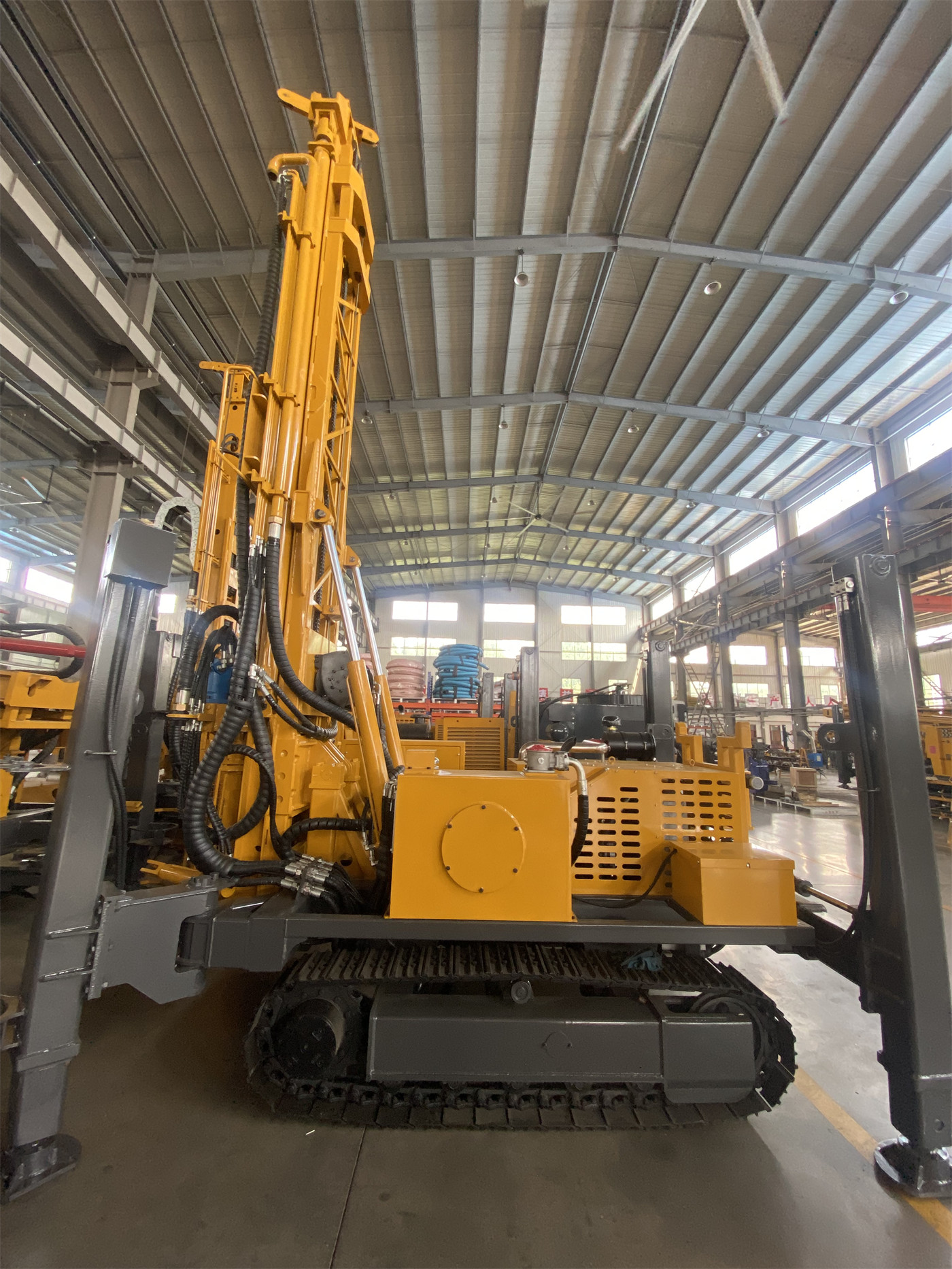

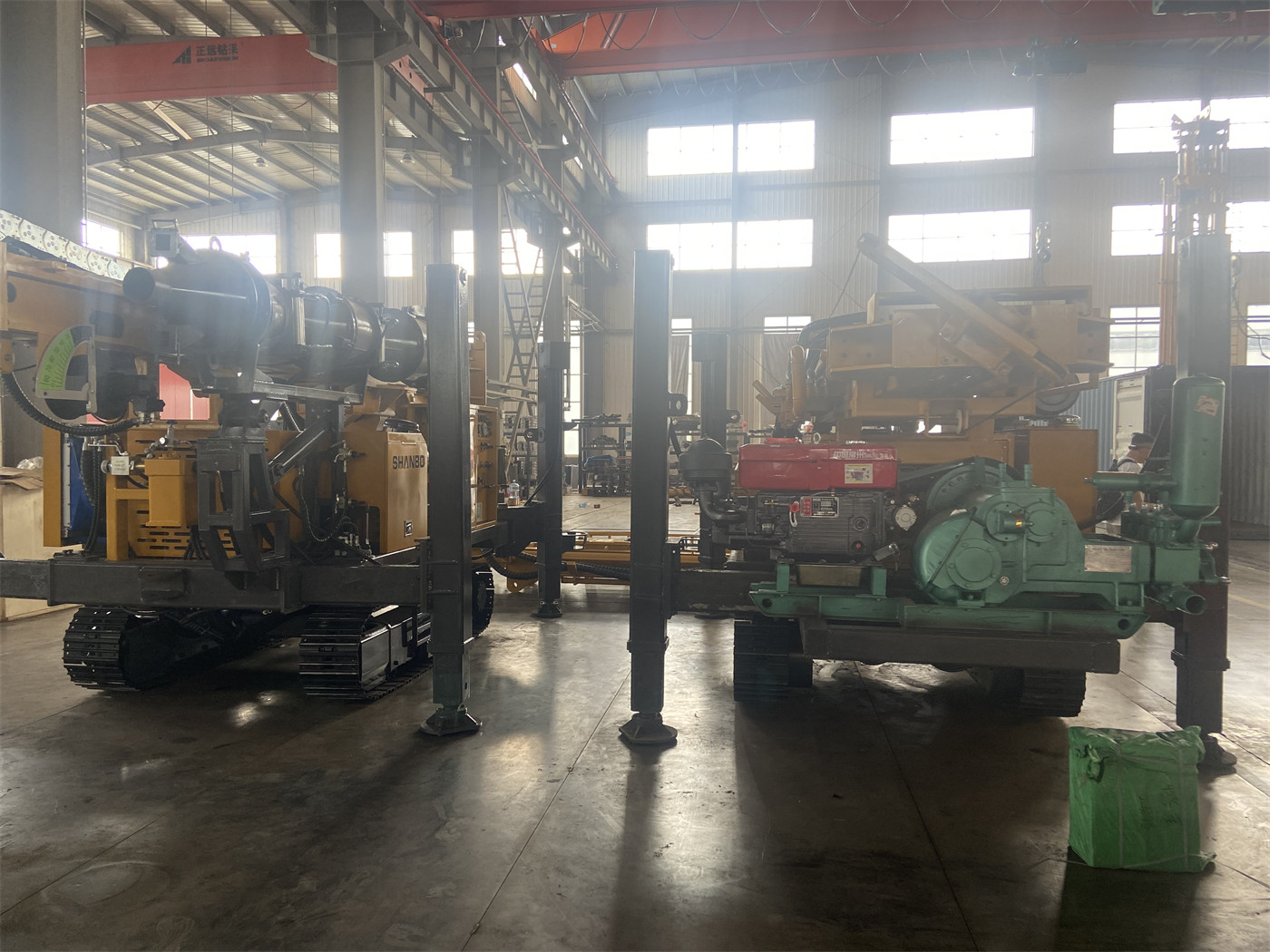

In addition, the WR600RC-CS3 supports three methods: RC hammer, DTH hammer, and mud rotary, with a maximum drilling depth of 600 m and a hole diameter of 105–450 mm; actual drilling depth will vary with hole diameter, dual-wall drill pipe weight, air compressor capacity, and geological conditions. Once hole diameter and hole depth approach the high values, the air volume required for sample return and the risk of downhole air leakage rise simultaneously; what the three-in-one system can improve is the surface process, and it cannot replace judgment about the downhole sample return state.
Items to confirm separately before purchase
- Splitting precision, reduction method, and basis for representativeness determination: the site's material does not provide specific values, and these should be confirmed in writing with the manufacturer.
- Routine maintenance locations and replacement parts list for the three-in-one system: the material only mentions cleaning requirements for the cyclone, splitter, and sample return hose.
- The site also needs supporting air compressors, sample bags, and transport vehicles; the drilling platform should reserve sufficient area to ensure smooth sample return piping and safe personnel access.
- If the project follows a QA/QC system, the setup requirements for duplicate samples, standard samples, and blank samples should be based on the project quality plan.
To sum up the difference between the two workflows in one sentence: how rock is fragmented at the hole bottom and how cuttings return are basically the same; after cuttings reach surface, the three-in-one system makes separation, splitting, and bagging continuous actions, while the conventional workflow divides these actions into separate operations. This difference affects the on-site sampling rhythm and labor organization, but does not change the management requirement that samples must be marked by depth and traceable segment by segment.
