The CR600P documentation states that "assembly can be completed in as little as about 30 minutes," while also noting that actual time will be affected by transport distance, site conditions, crew proficiency, and auxiliary equipment. For buyers, this time cannot be taken directly as a field commitment for mountain projects. A more reasonable approach is to break it down into verifiable conditions: how heavy each module actually is, how many independent carrying units it can be split into, how much usable platform space exists near the hole, and whether the transport route allows staged delivery. Only when these prerequisites hold does discussing assembly time become meaningful.
First, map "30 minutes" to specific modules

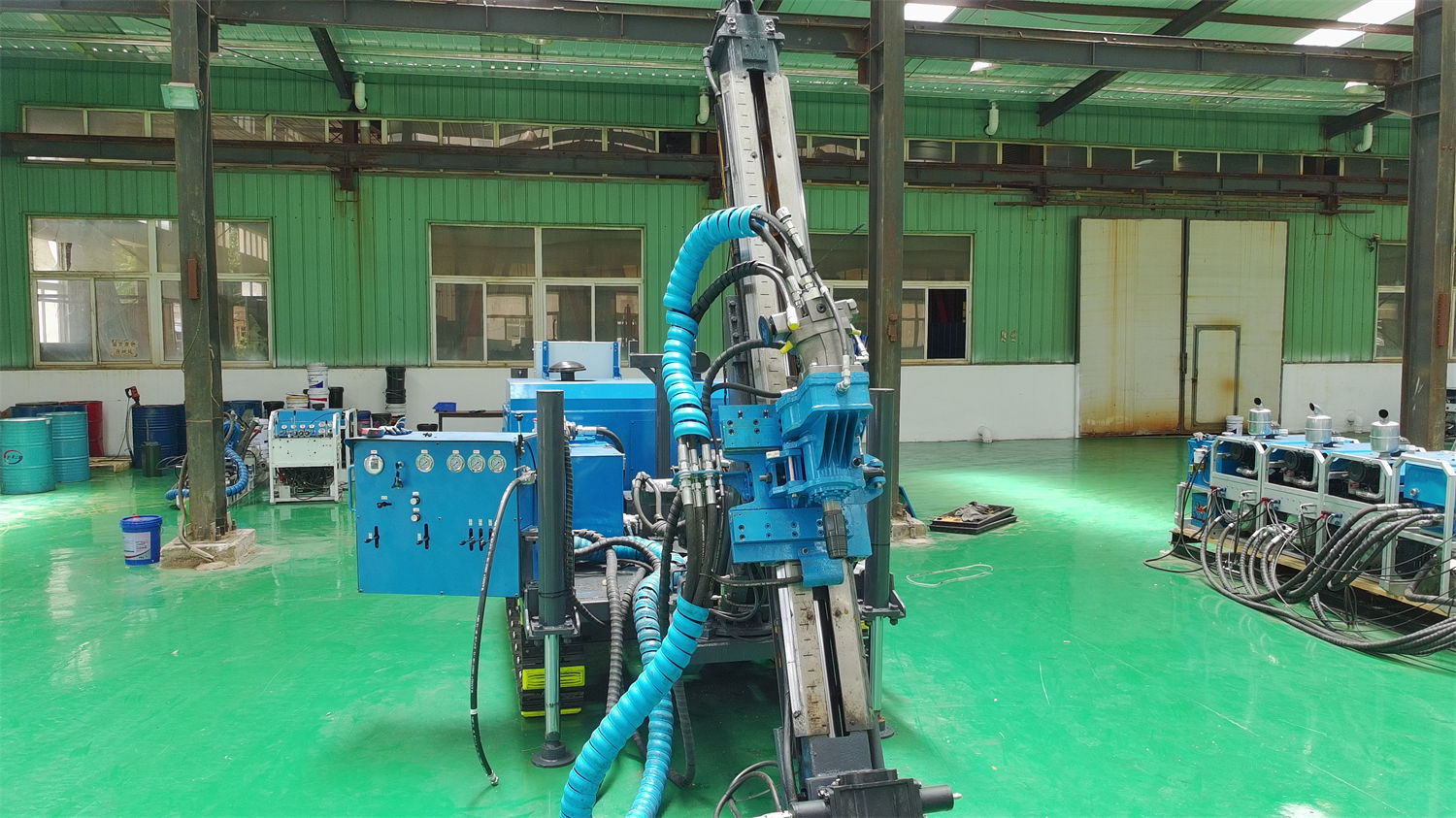

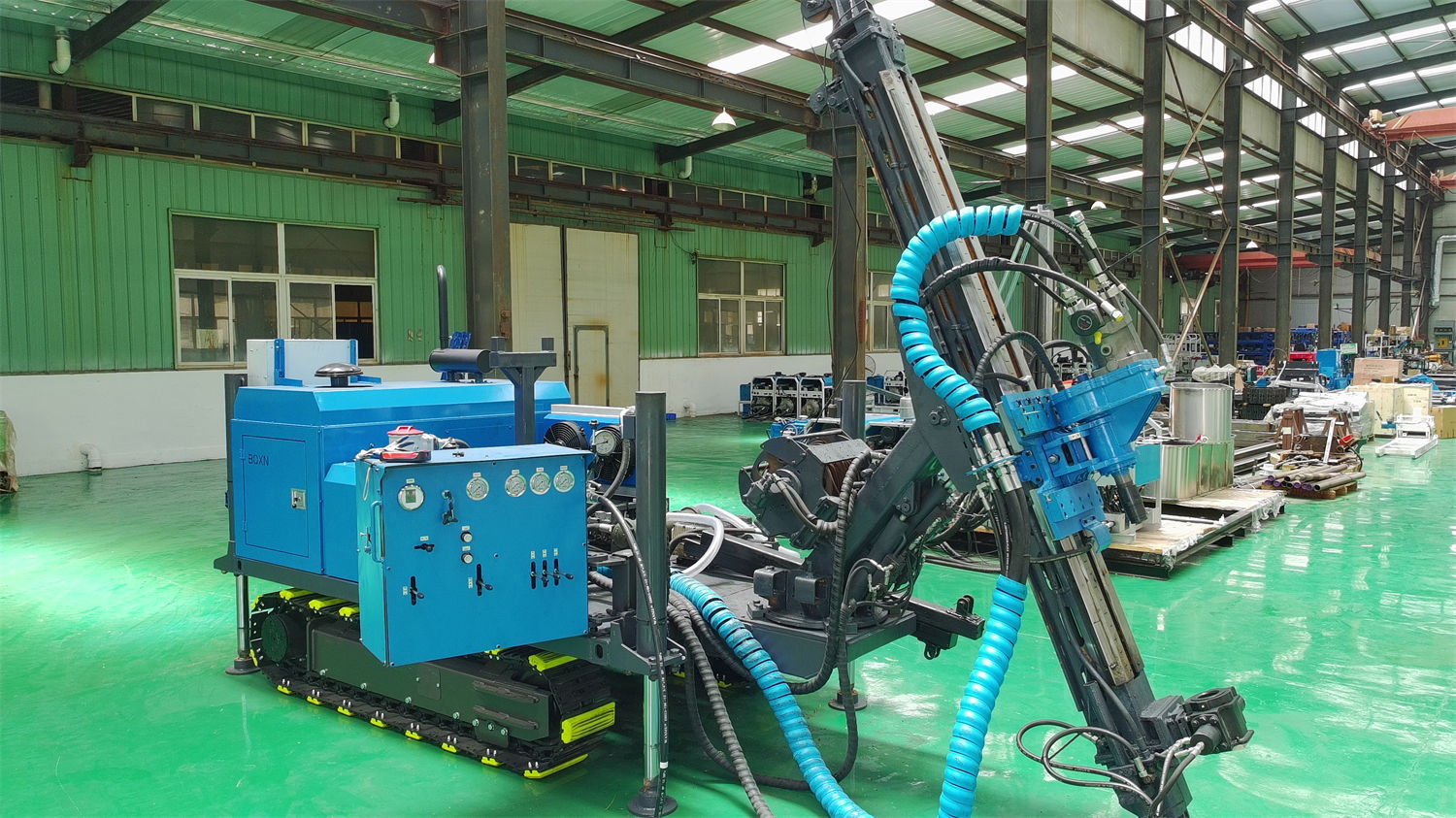

The CR600P is a 600m portable split full-hydraulic core drill, with power, hydraulic, control, mud, and drilling mechanisms divided into multiple independently transportable functional units. The documentation provides reference weights for some modules: power unit 180–260 kg, control unit 125 kg, hydraulic oil unit (including oil) 140 kg, mud unit 86 kg, total weight 1200 kg. Before inclined hole drilling, the mast and base must also be stable, so the weight division of the drilling mechanism and base also affects the transport method.
The documentation does not provide a complete single-item weight list for all modules. During procurement, buyers should request a full module-by-module weight table from the manufacturer, with particular attention to components such as the drilling mechanism and base. This is because "portable" only means the structure can be split, not that every unit can be carried manually over short distances.
Module information to verify
- Net weight of each functional unit and actual weight including oil and fluids
- Maximum dimensions of individual pieces to determine whether they can pass through forest roads and temporary access roads
- Sealing and cleanliness requirements for hydraulic lines and quick-change couplings after repeated disassembly and assembly
- Stability conditions of the mast and base at drilling angles of 45°–90°
Four real-world variables for mountain transport verification
The documentation lists mountainous areas, forest regions, and roadless mining areas as core application scenarios, and also advises evaluating hillside stability, rockfall, rainy-season roads, manual carrying routes, and temporary platform load-bearing capacity before construction. These are precisely the key variables for verifying assembly time.
| Variable | Impact on assembly and relocation | Information to confirm during procurement |
|---|---|---|
| Transport distance and terrain | Determines the sequence of staged module arrival and auxiliary labor hours | Assessment of the actual carrying path from the parking point to the hole |
| Temporary platform size | Affects whether modules can be placed separately and assembled | Available area around the collar and load-bearing conditions |
| Crew configuration and proficiency | Directly affects disassembly and assembly efficiency | How many people are needed and whether training is arranged |
| Auxiliary equipment | Mismatched lifting, towing, or transfer methods will lengthen work hours | Types and capabilities of auxiliary equipment available on site |
The "Information to confirm during procurement" in the table are on-site assessment items and do not mean that this site has measured these conditions. Whether the requirements are met should be judged by the buyer based on their own hole locations, roads, and crew conditions.
Drilling angle and site conditions should be confirmed before assembly time
The CR600P supports drilling at 45°–90°, and the documentation emphasizes that the mast and base must be stable before inclined hole drilling. Inclined hole layouts generally place higher demands on the platform and base than near-vertical holes. If the hillside site lacks sufficient flatness and the backfilled platform has limited load-bearing capacity, assembly and leveling time will increase significantly even if the modules reach the collar. Therefore, before procurement, buyers should first determine which holes require inclined drilling based on orebody attitude and hole layout, then assess whether the site conditions at those holes can support a stable base.
Verification actions recommended by the documentation before equipment entry
- Verify the weight of each module and the transport route to avoid modules being unable to be moved further after arrival
- After assembly, inspect quick-change couplings, hydraulic lines, and structural connections
- Before inclined hole drilling, confirm the stability of the mast and base
- During continuous drilling, regularly inspect hydraulic oil, filters, wire rope, chuck, and mud pump
Operating conditions to monitor after assembly
Assembly time is only part of the relocation process. The main parameters of the CR600P include: BQ reference drilling depth 760 m, NQ reference drilling depth 600 m, HQ reference drilling depth 280 m; power head maximum speed 1200 rpm, maximum torque 780 N·m; feed force 55 kN, pull force 100 kN; chuck maximum clamping force 120 kN, through-hole capacity 54–127 mm; wireline winch rope capacity 800 m (6 mm wire rope), lifting speed 116 m/min; mud pump flow 90 L/min, pressure 3 MPa. Power options include diesel or electric; diesel engine power requirement is ≥66 kW, and a 22 kW × 2 electric motor combination is also available.
These parameters describe equipment capability. Actual drilling efficiency, drilling depth, and core recovery still depend on site conditions. The documentation specifically notes that geological conditions, downhole tools, drilling angle, and operating methods can cause differences, and buyers should not treat reference drilling depths as guaranteed values achievable at all hole locations.
Checklist to confirm with the manufacturer
Regarding "30-minute assembly," a more prudent approach is to turn it into specific questions rather than asking the manufacturer to commit to an absolute time:
- Complete module-by-module weight and dimension list
- Assembly procedure, required number of personnel, and auxiliary equipment requirements
- Key points for base installation and leveling under 45° inclined hole conditions
- Maintenance requirements for quick-change couplings and hydraulic lines after repeated disassembly and assembly
- Differences in transport unit division between diesel and electric power options
- Daily inspection items for wire rope, chuck, and mud pump
The documentation does not provide measured disassembly and assembly time data for each module, measured transport records under different slopes, or assembly cases tied to specific projects. These items need to be further confirmed by buyers with the manufacturer based on their own hole conditions, and this article does not infer actual performance for any project based on them.
